Total installed power of 165.5 kW provides the opportunity to increase whole complex efficiency – both rock mass destruction and rock loading-transportation.

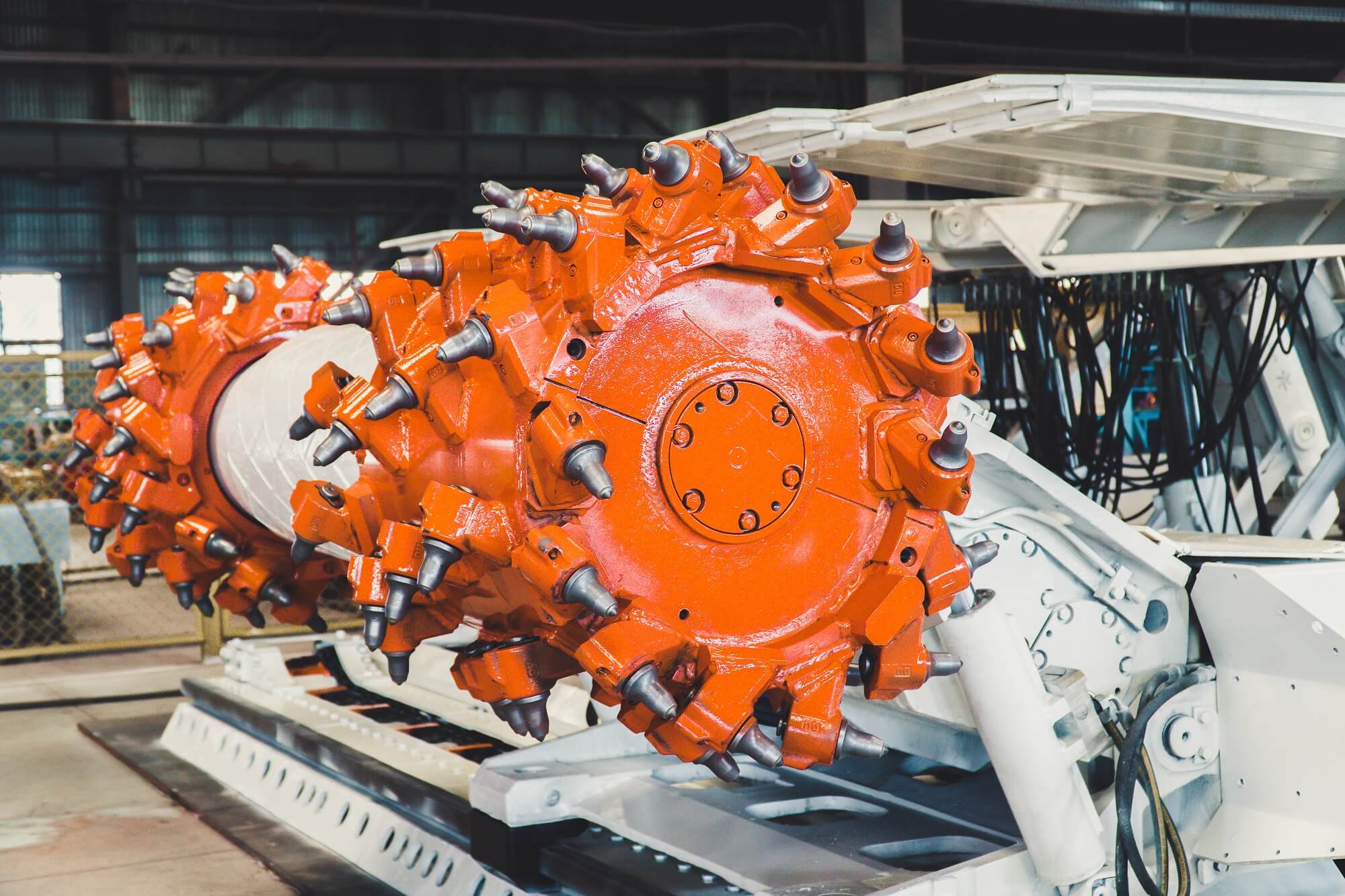

New generation of enduring cutting drum ensures efficient rock mass destruction.

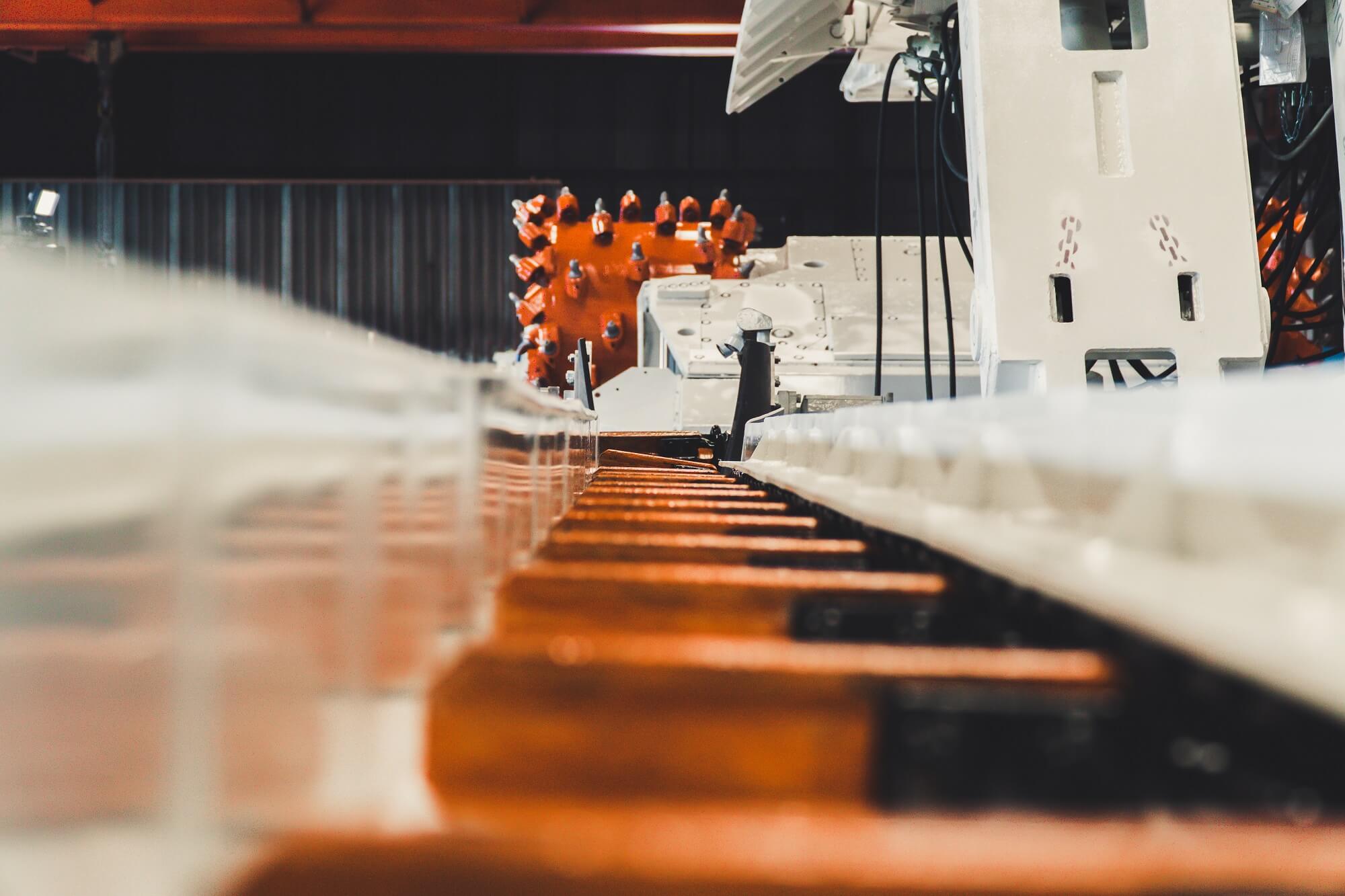

Unique construction of armored conveyor bend drum permits to load destructed rocks under the angle of 90° to face and up to 3-4 times more efficient, than in out-of-date models.
Using the armored stage loader in the complex give the opportunity to load the rock mass without interruption and pan line increase operations up to 15 linear meters, which increases complex utilization ratio and tunnelling speed.
Efficiency, t / min | 0,8 / 1,5 |
Rated mains voltage, V | 660 / 1140 |
Total installed drive power, kW | 165,5 |
Control system type | manual, hydraulic |
Width, m | 4,4 / 5,3 / 6,2 |
Height, m | 1,3 – 2 |
Weight, t | 52 |
