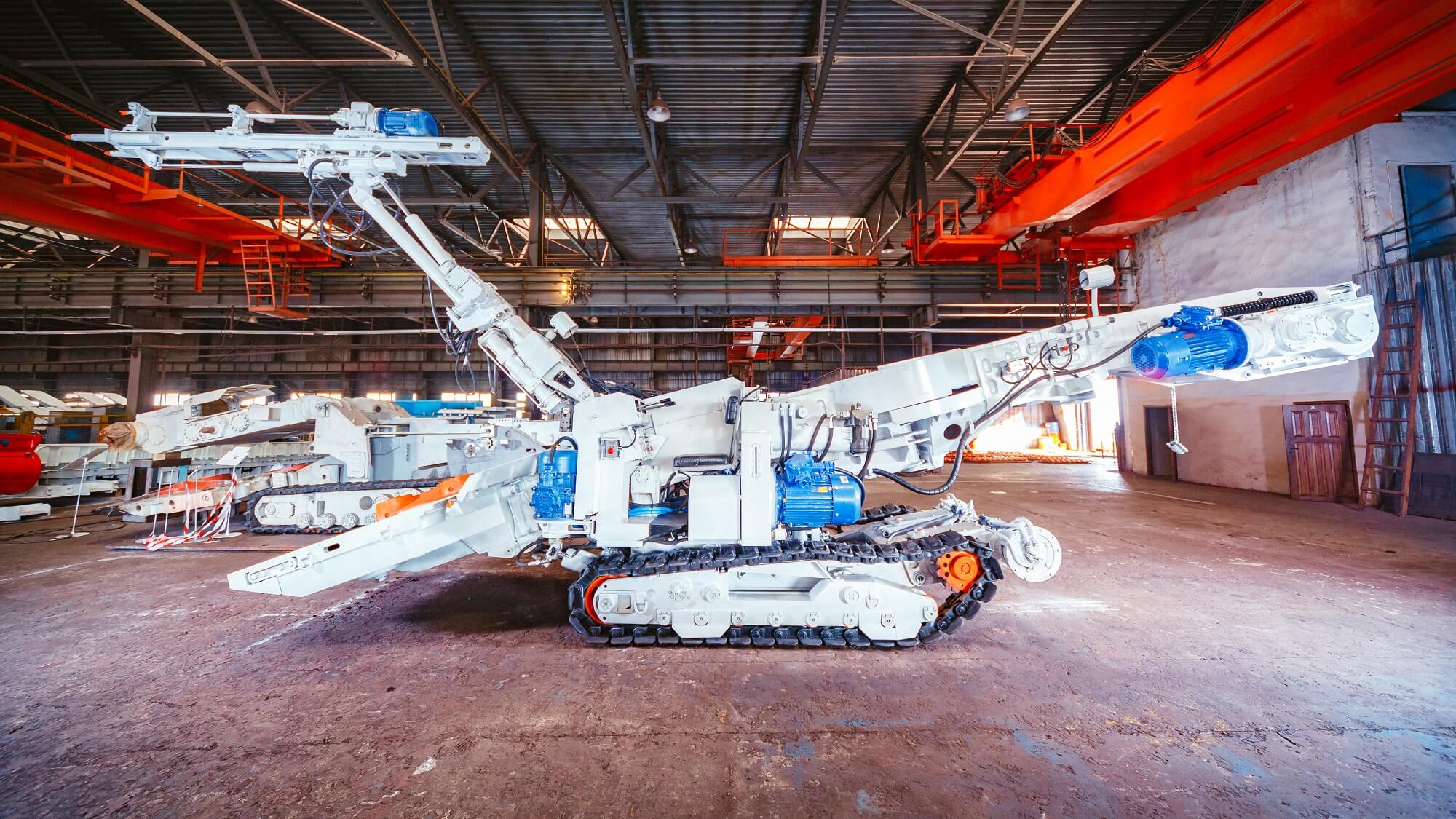

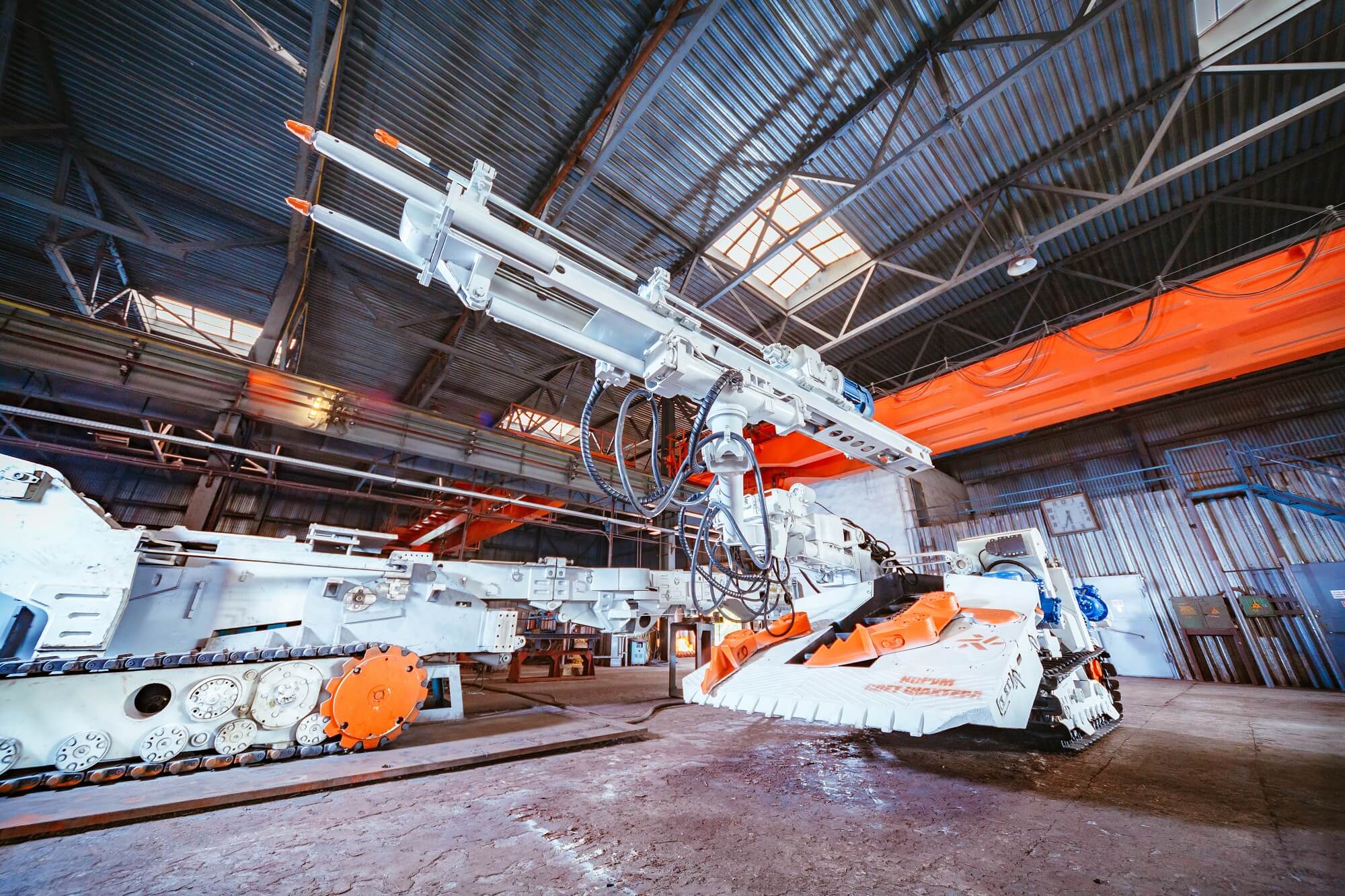

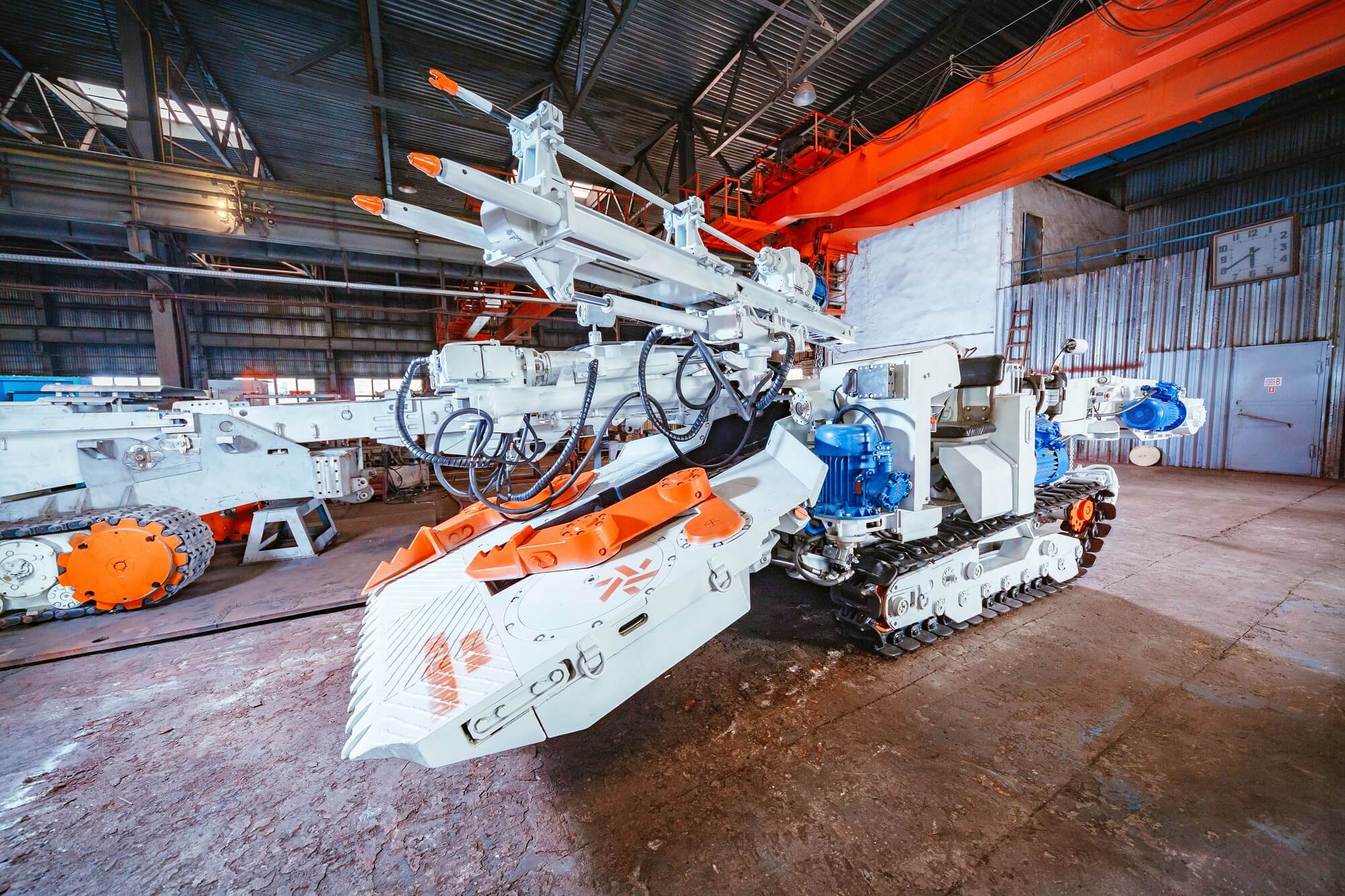

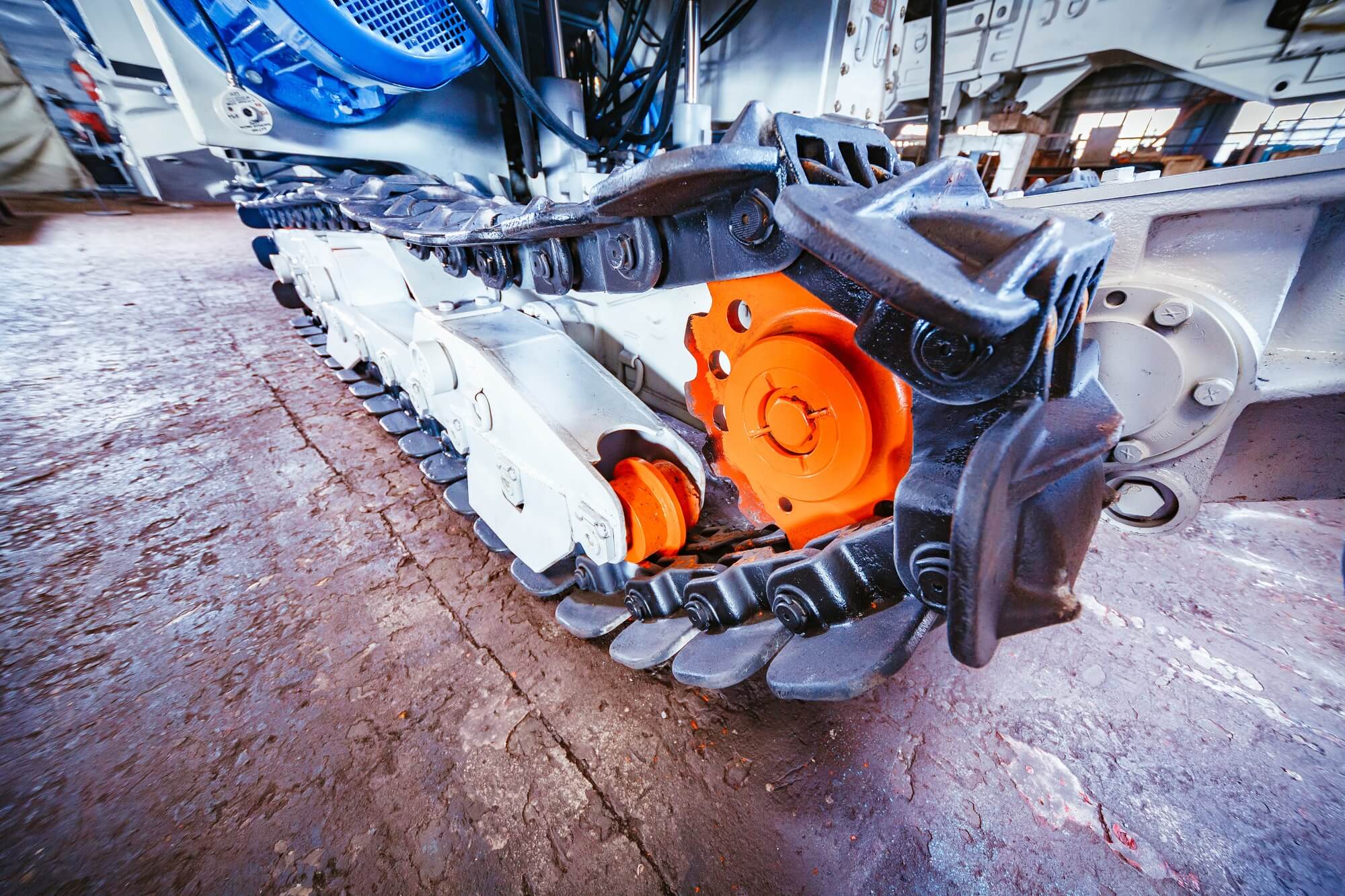

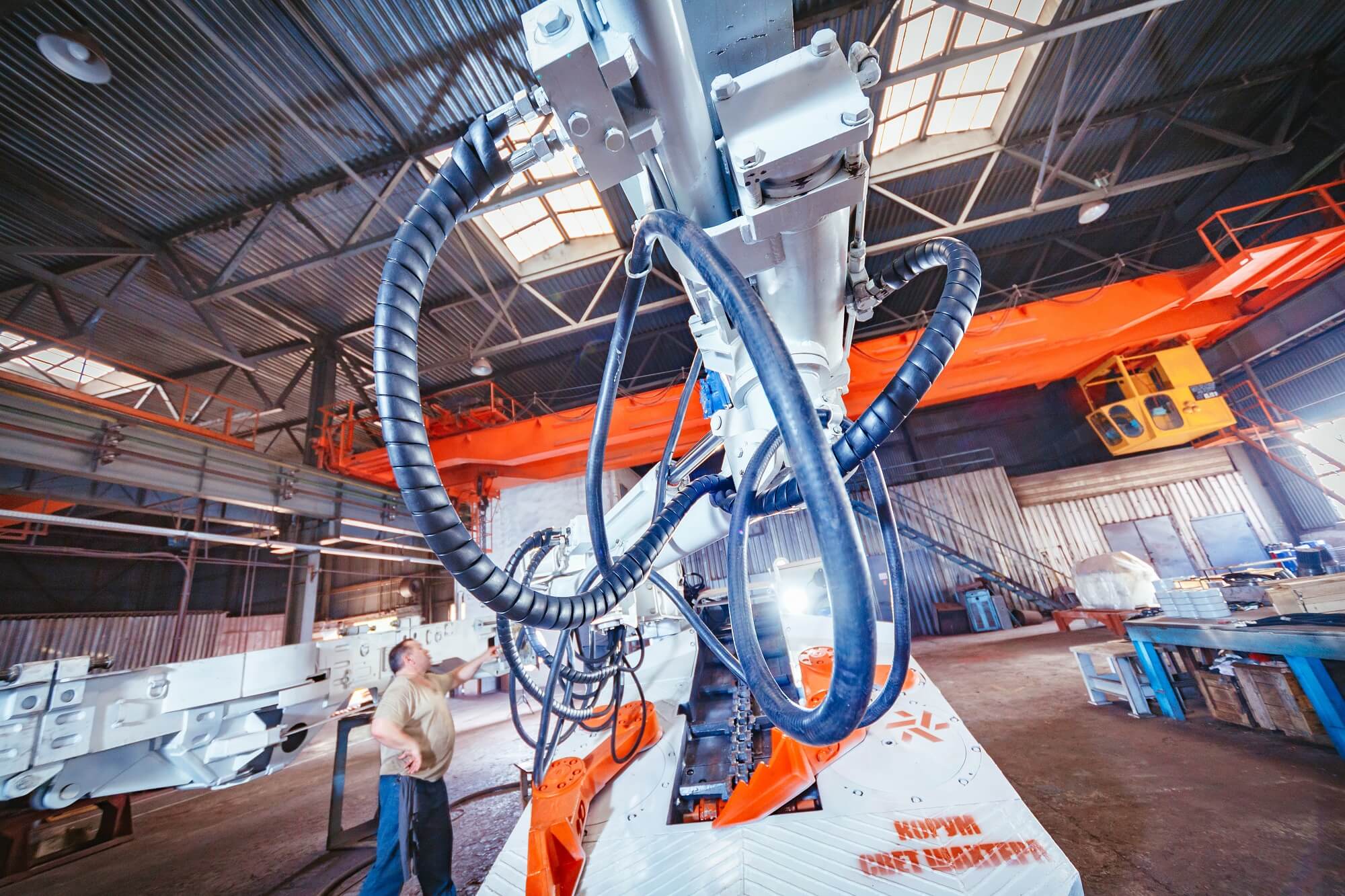

Machine designed for loading of the rock mass destroyed by drilling and blasting, in mine cars, conveyor or other mine vehicles, during horizontal and inclined tunnels construction with raw cross-section from 8 m² in mines, hazardous with gas and dust, as well as for mechanization of drilling using 42 mm diameter drilling tool in faces where rock strength Ϭcompr ≤112 MPa when using rotational drill bit and Ϭcompr ≤ 224 MPa when using shock-rotational drill bit.
Two independent oil stations for separate control of drilling operations and destroyed rock load process.
Armored conveyor is reinforced with stripes of wear-resistant steel, increasing it’s lifetime by 2-3 times.
Loading plate gearbox with a 30 kW drive and one bevel gear.
Machinist workplace is mounted on the machine and equipped with electric and hydraulic control panels.
Possibility of inclined tunnels operation up to -18º using the holding device.
Tunnel inclination angle | ±12° |
Size of loaded rock pieces in biggest dimension, mm | 500 |
Machine speed, m/min | 11 |

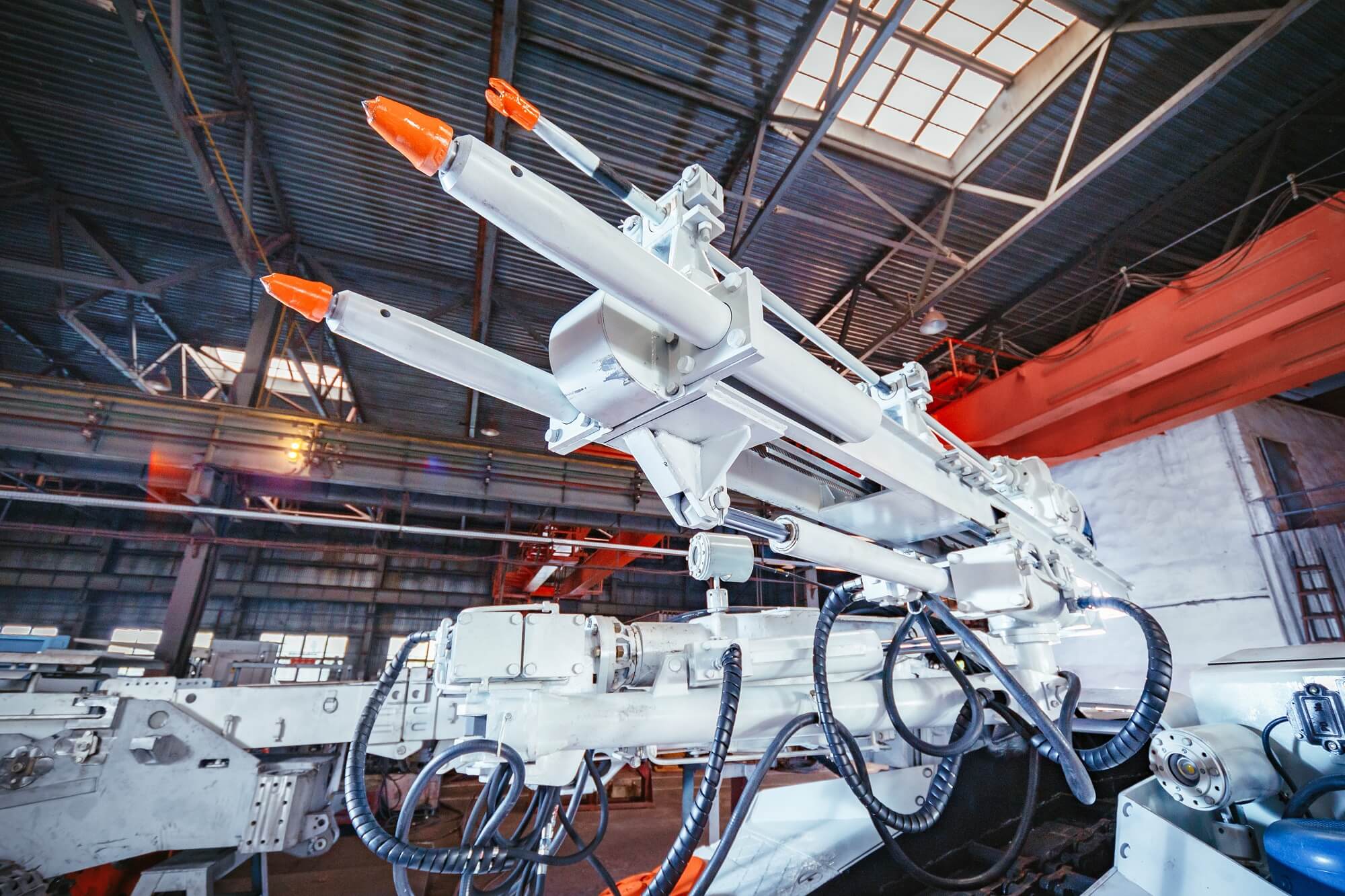

Drill head advance step, m | 2,5 |
Conveyor boom plane rotation angle, deg | ±35 |
Installed drive power, kW | 97 |

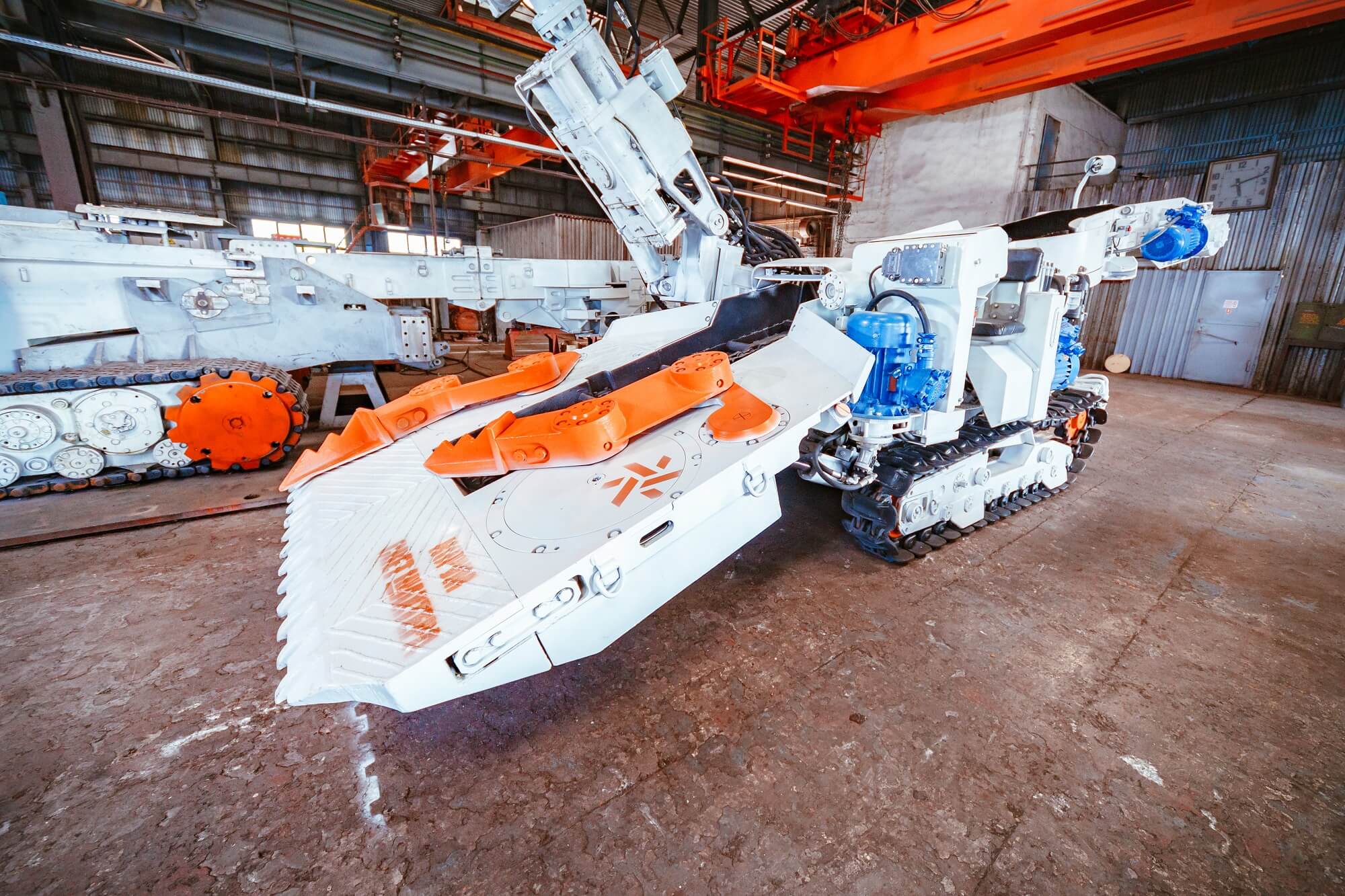

Loading table operating width, mm | 2100 |
Drilling, m/h | 48 |
Loading, m3/min | 3 |
Average lifetime before the first overhaul drilling, machine hours | 1000 |
Average lifetime before the first overhaul loading, thous. m3 | 24 |
Width, m | 2,1 |
Length, m | 8 |
Height, m | 2,3 |
Weight, t | 15,2 |
